Posted 03 August 2009 – 08:30 PM
Well, so far I have ordered my plans from Michael Collins website, purchased some Cuban Mahogany and today received my White Claw top from M a r i o. I have also completed re-sawing my Mahogany billet.
Posted 29 August 2009 – 06:28 PM
Well I am pretty far along building my side bending form and J45 mold. Here are some pictures of work so far.
Attached thumbnail(s)
Posted 01 September 2009 – 07:29 PM
This weekend I finished by Side Bend form and cut out all my templates. I cut out the pieces then glued to hardboard so I would have permanent set. Bridge, Head plate, Neck and brace templates are shown sitting on the hardboard side template I made using Jesse’s drawing.
Attached thumbnail(s)
This post has been edited by Flarda: 01 September 2009 – 07:33 PM
Posted 06 September 2009 – 05:41 PM
Well today cut out my top, back and sides. I am hopefully going to bend my sides tomorrow. I also worked on finishing up my body mold. I feel pretty good about getting my top and back glued together and cut out as this is my first build. The joints look really good (at least to me).
Attached thumbnail(s)
Posted 07 September 2009 – 06:16 PM
Well today I did my first side bends. Took me most of the day with setting everything up and waiting on the sides to cool down between heat cycles (86 degrees in my garage today). I am very happy with the results. I do have a couple of scorch spots (I hope they will sand out). Here are some pictures.
Attached thumbnail(s)
Posted 07 September 2009 – 06:21 PM
While I waited on my sides to cool etc, I worked on my top. Since my sander maxes out at 12″ Jesse advised me to take my side pieces down to .150 then glue up. I made myself a sanding stick to take the joined top down to .125 today.
Attached thumbnail(s)
My “Shop” is actually 1 side of my garage. I built a work bench (seen in my photos) and have all my power tools on platforms with casters so I can move them around to get to what I need. I have a Grizzly dust collector with a hose splitter so I have 1 4″ and 1 2″ hose that I switch between my tools. Here are a couple of pictures some are out of date.
Attached thumbnail(s)
Posted 20 September 2009 – 05:45 PM
I had to build myself a jig to cut my kerfing. Here is a couple of pictures of what I came up with.
Attached thumbnail(s)
Posted 23 September 2009 – 10:24 AM
Today I started gluing in the kerfing.
Attached thumbnail(s)
Posted 03 November 2009 – 03:55 PM
Well finely getting back to work on my guitar after a few set backs.
Today I glued in the side braces.
Today I glued in the side braces.
Attached thumbnail(s)
Posted 25 November 2009 – 05:06 PM
I made my own Rosetta. I cut out a circle from the left over back wood. I added a B/W/B to the inside and outside with super glue. Have a couple of flaws but what the heck it is my first try.
Attached thumbnail(s)
Posted 27 November 2009 – 07:57 PM
Well I got the rosetta inlay’ed into my top and the sound hole cut out. I am pretty happy with result so far. Next I will work on top bracing.
Attached thumbnail(s)
F
Posted 28 November 2009 – 06:00 PM
I used Steve’s method for transferring the top bracing outline to my top.
Attached thumbnail(s)
Posted 29 November 2009 – 08:15 PM
Today I got my braces rough cut and the X brace lap joint glued up.
Attached thumbnail(s)
Posted 06 December 2009 – 08:07 PM
I got my X brace and the remainder of the top braces glued in thais weekend.
Attached thumbnail(s)
Posted 08 May 2010 – 05:37 PM

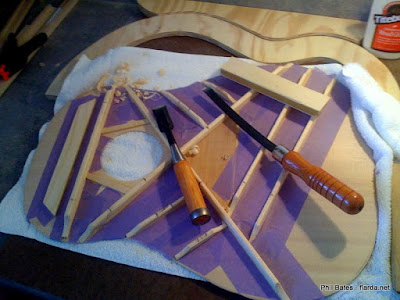

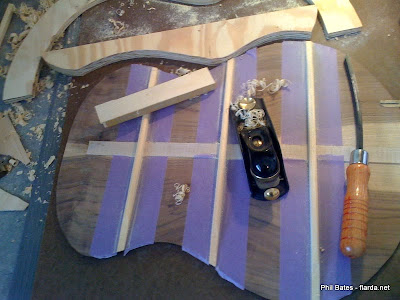

Finely back on my build 6. Today I carved my back and top braces.

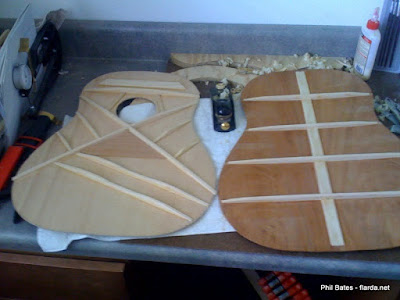

Finished bracing.
Thanks for looking.
Posted 18 July 2010 – 07:20 PM

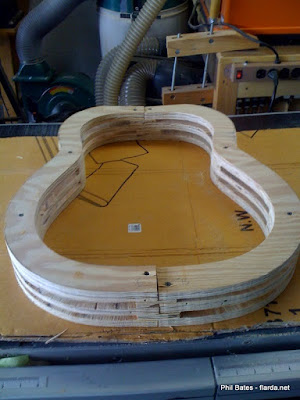

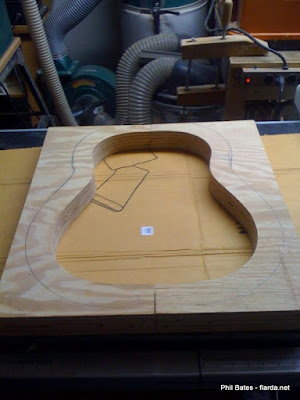

I did not like the original mold I made for this build as it is too heavy and kind of hard to maneuver. I took some time today to remake it. I took the original, cut off the corners and then re-sawed it on the band saw and then reassembled it. This is now like the one I made for build 8 and is much lighter and easier to use. (I needed a lighter steering wheel for driving the bus!)
